Understanding edges:
Canny Edge Detector

Hey! In this blog, I want to dive into what features (such as edges and corners) are and how we can detect edges in an image. In a later blog we will look at not only how to detect corners but also how to track them; however, understanding edges is the first step.

For context as to why this is important, detecting corners is the first step in feature tracking which has millions of applications that range from video stabilization to self-driving cars all the way to AR/VR headsets like the Oculus Quest.

I will be diving into the pivotal algorithm John F. Canny designed all the way back in 1986: the Canny Edge Detector

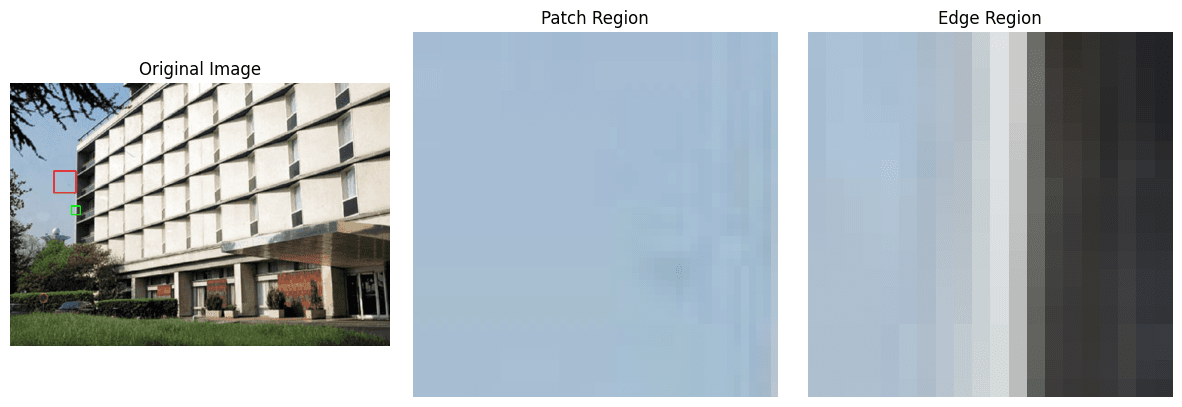

Ok to start off, what even is an edge? An edge for our purposes (and generally described as) is a sharp contrast in pixel intensity. As shown in the two images below, the left is a regular patch of pixels whereas the right is an edge.

Given that edges are rapid changes in intensity , if we look at the intensity values along a left to right strip of pixels we should find large changes where the edges are located.

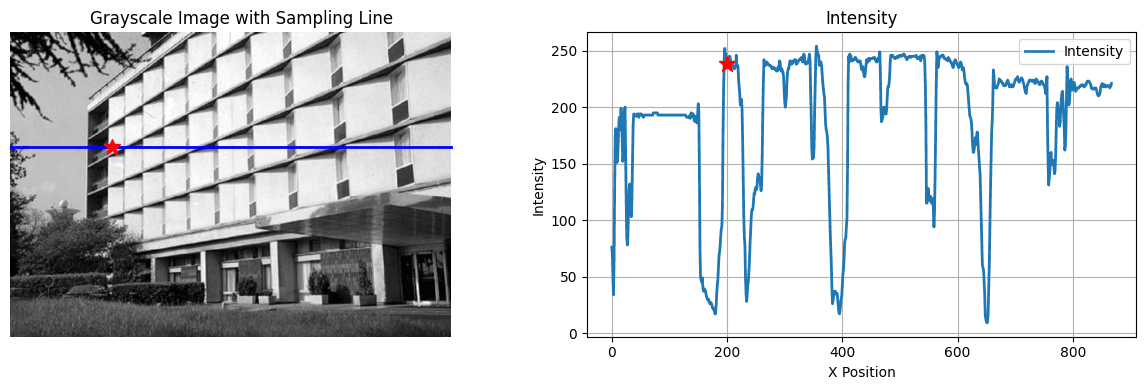

If you look at the yellow star in both images it is clear that there is an edge there not just by looking at the image but also by looking at the change in pixel intensity on the right graph.

I've been saying "change in intensity" a lot, hoping it would trigger the calculus side of your brain to start thinking about derivatives (if you don't know what derivatives are, watch this video or check out this blog post abt calc incoming 👀 ). If we create a discrete derivative of the intensities, all we have to do is look for large derivatives.

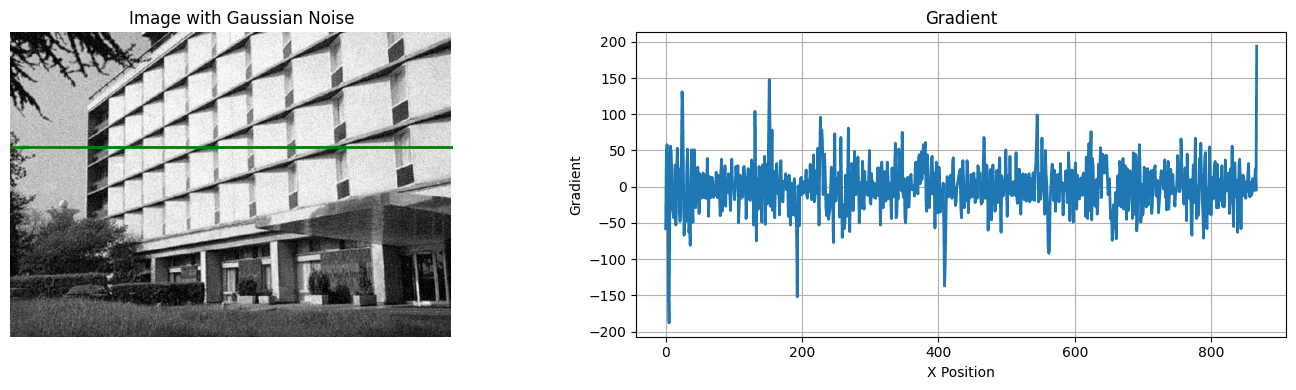

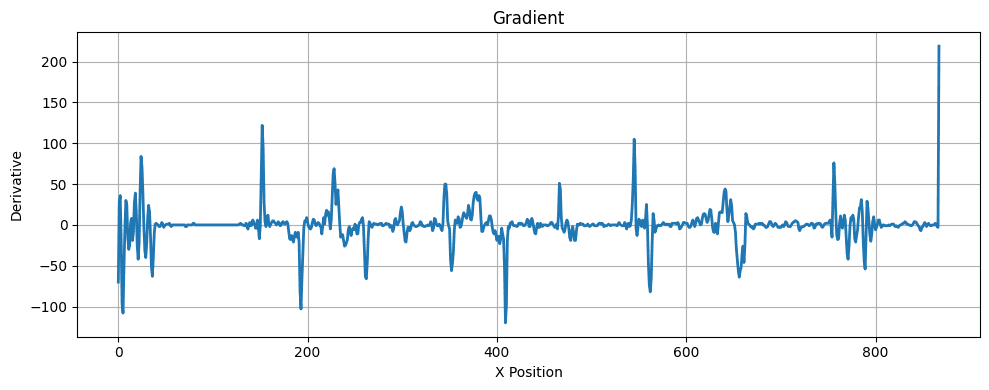

Now, most images aren't perfect and some tend to be on the grainier/noisier side. Here is what happens to our gradient after we add a little bit of gaussian noise.

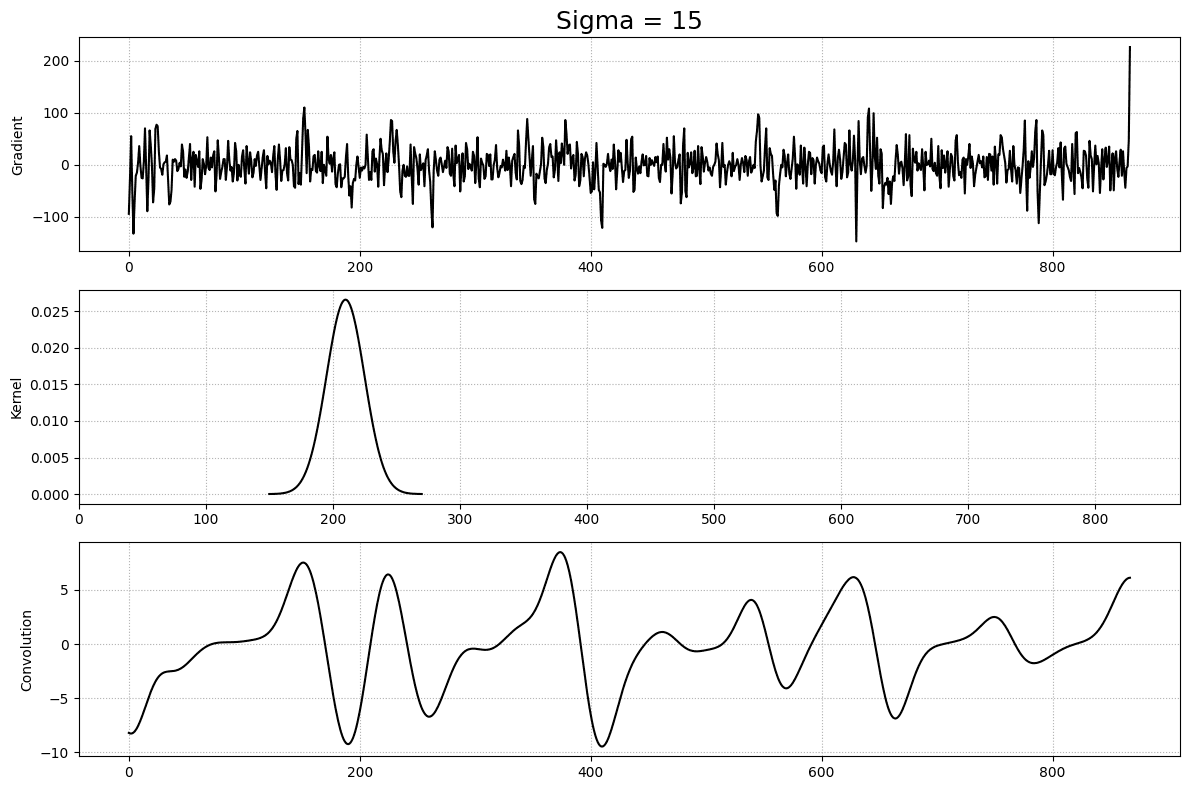

The solution here is simply to use a Gaussian blur to eliminate the noise. Here is the gradient with a Gaussian blur applied. It is important to note that we can apply the blur to the image and then take the derivative as well because it is a linear operation.

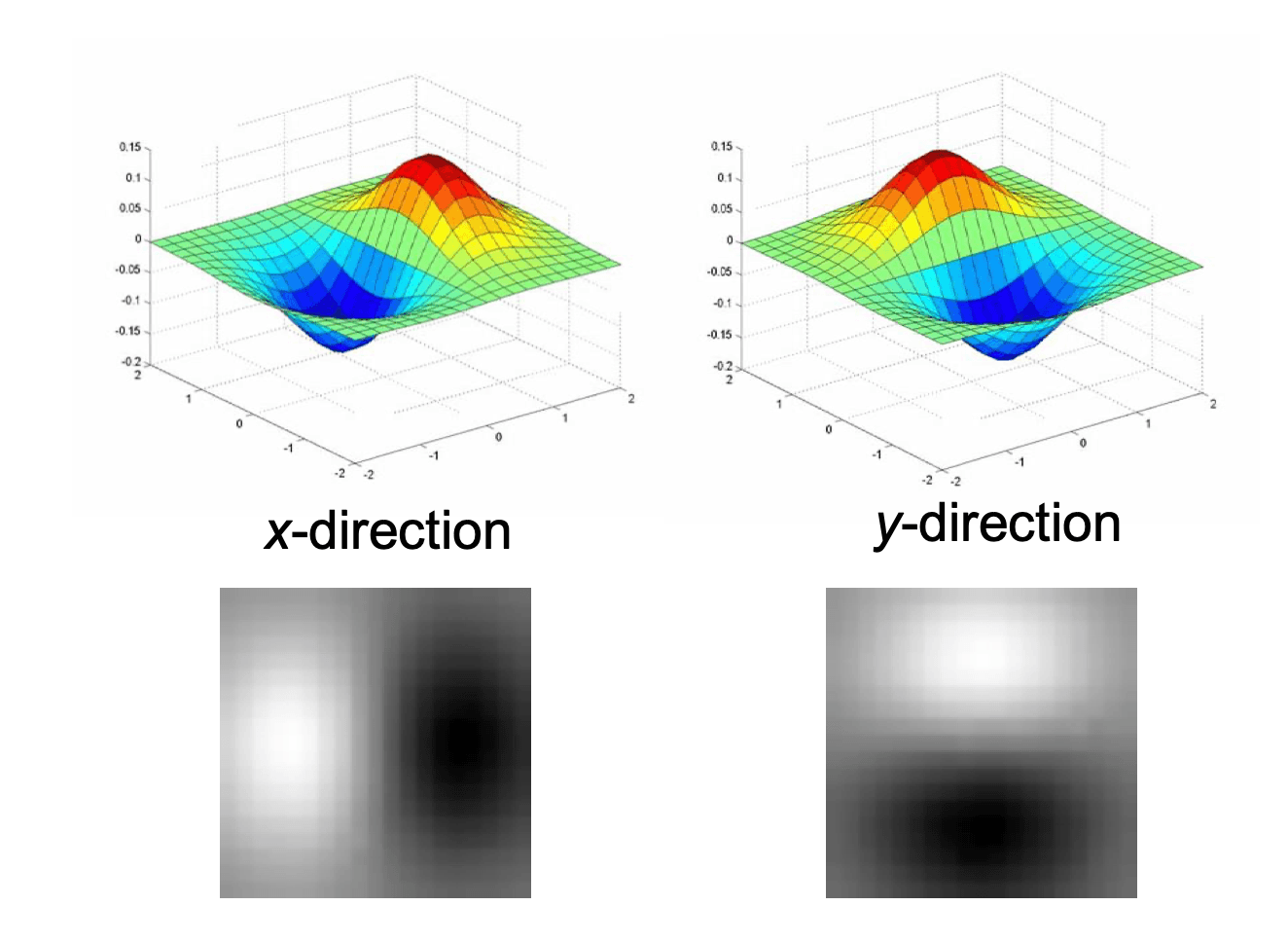

Due to linearity we can simply take the derivative of the gaussian (DoG) w.r.t the x and y directions (this splitting of the filter is called a separable filter which is computationally cheaper and mathematically equivalent). The (DoG) is able to reduce noise and do edge detection at the same time.

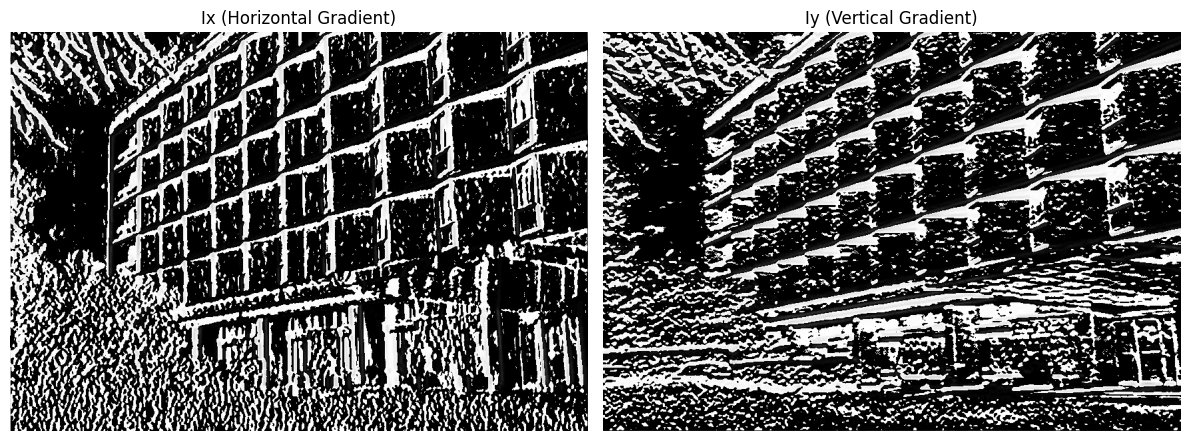

The (DoG) is the first of 3 steps in the Canny Edge detection algorithm. After applying this filter we get back ∂I/∂x and ∂I/∂y (I is intensity so we are taking the partial derivative of intensity w.r.t the x direction as well as the y). Also, you may hear "Sobel filter" a lot when looking into the Canny edge detector and that is another filter used to compute gradients, we did not use that here.

# Recall the first step is performing a Gaussian Blur
smooth_window_size = 7
blur = cv2.GaussianBlur(img, (smooth_window_size, smooth_window_size), 0)

# We can now create a Kernal and pass it through the image
kernel = np.array([-1, 0, 1], dtype=np.float32) / 2.0
Ix = ndimage.convolve1d(blur, kernel, axis=1, mode='constant')
Iy = ndimage.convolve1d(blur, kernel, axis=0, mode='constant')

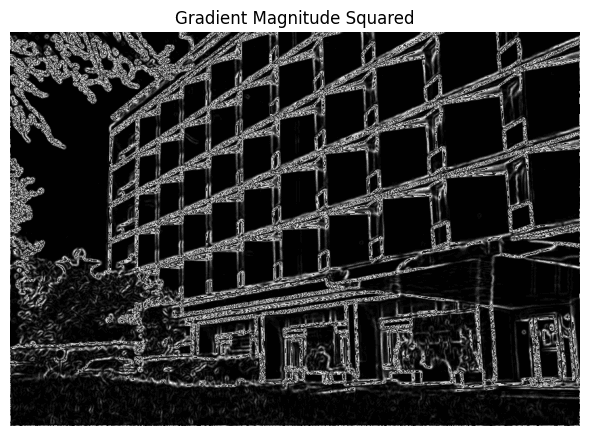

The next step is combining these images by squaring both of them, adding them, and then taking the square root. This is called the gradient magnitude, which allows us to amplify strong signals and get rid of weaker ones while also combining the x and y gradients (the reason this amplifies strong signals and weakens smaller ones is because a small value squared gets smaller while a large value squared gets larger).

# We now can combine them and this will give us all the edges in the image
grad_mag = np.sqrt(np.square(Ix) + np.square(Iy))

Ok so now we have a filter that can help us find where edges are and is invariant to noise. But before we move on, I want to pose the 2 things we want in a good edge detector. These will help lead us to the next two steps of the algorithm

1. Good detection of edges
2. Good localization of edges. This means that if we have detected edges, we want to make sure that they are close to the actual ground truth edge.

If you look closely at the gradient magnitude then you can see that the edges are pretty thick and in reality we only need one pixel to classify an edge. The technique we will use to get rid of this is Non-Max Suppression (NMS)

Non-Max Suppression (NMS): the goal is to keep only the local maxima along a gradient direction. What does that mean? That means that if we have, say, a 45 degree edge and a bunch of pixels describing that edge, we want to only keep the edges that have the largest signal.

Let's dive into what I mean by gradient direction. So recall that an x gradient is measuring a vertical edge. If we go along the x gradient in a particular pixel patch and we keep only the maxima in a local region that means that we thinning out or shaving a vertical edge. I really want that to stick with you and why we are thinning out and shaving as opposed to erasing an edge.

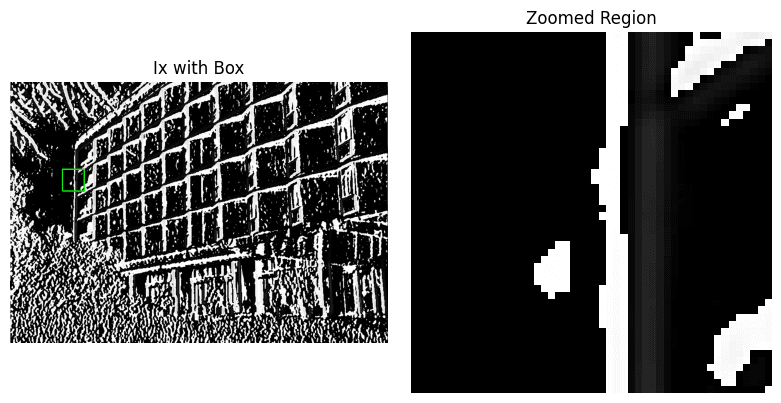

In this image, we can see how the x gradient is showing a vertical edge and by going along the axis of the gradient we can thin out the edge by only taking the maxima at this location. Once we have done our NMS we will come back to this spot and revisit how the edge looks

Now the big question is how do we figure out what orientation a certain pixel edge is representing? To understand how to solve this problem let's take a look at the two gradients of a sample pixel. If we combine the two gradients into a vector we now have a vector that represents the change in x and y of a pixel's intensity. If we take this vector and plot it we can see the direction and magnitude of the edge. So the next question is how do we separate this into the direction. Watch the video below and you can see just how to do that (you will need a basic understanding of linear algebra and trigonometry).

The arctan of the two gradient intensities is what gets us our angle. When you have a 0 Ix value, arctan is undefined. Also, when you have arctan(-1/-1) and arctan(1/1), they will point in the same direction. To solve this, NumPy has a function np.arctan2() that will give us a value between -π and π without these issues being a concern. Now what do we do with that angle? If we have a 45 degree angle, we can now thin out edges along a 45 degree axis.

In practice, we usually don't keep every exact angle. Instead, we quantize the gradient direction into a few main buckets so non-maximum suppression knows which neighboring pixels to compare against. For Canny, this is usually done with 4 directions: 0°, 45°, 90°, and 135°.

Here are general steps:

• look at the pixels direction
• quantize
• compare it to the 2 neighboring pixels along that direction
• keep it only if it is the largest

# We already have the gradients combined and now
# we can take those and compute the angle using arctan2 and rad2deg
angle = np.rad2deg(np.arctan2(Iy, Ix))

# np.rad2deg() gives us angles from -180 to 180. Edges don't care about
# direction vs opposite direction. A 45 degree edge and a 225 degree edge are the same edge.
# Therefore we add 180 and divide by 180.
angle = (angle + 180) % 180

# q is the quantized array and we will use masks to apply the correct bins to each angle
q = np.zeros_like(angle)

mask = (angle >= 22.5) & (angle < 67.5)
q[mask] = 45

mask = (angle >= 67.5) & (angle < 112.5)
q[mask] = 90

mask = (angle >= 112.5) & (angle < 157.5)
q[mask] = 135

nms = np.zeros_like(grad_mag)
H, W = nms.shape

# we are chopping off the first and last values so we don't go out of bounds
for y in range(1, H - 1):
    for x in range(1, W - 1):
        current_grad = grad_mag[y, x]
        direction = q[y, x]

        if direction == 0:
            # this means we are going left to right
            # p stands for pixel
            p1 = grad_mag[y, x - 1]
            p2 = grad_mag[y, x + 1]
        elif direction == 45:
            # the angle is 45 degrees so we need the top left and bottom right pixels
            p1 = grad_mag[y - 1, x - 1]
            p2 = grad_mag[y + 1, x + 1]
        elif direction == 90:
            # we are going up down
            p1 = grad_mag[y - 1, x]
            p2 = grad_mag[y + 1, x]
        else:
            # the angle is 135 so we need top right and bottom left
            p1 = grad_mag[y - 1, x + 1]
            p2 = grad_mag[y + 1, x - 1]
        if current_grad >= p1 and current_grad >= p2:
            nms[y, x] = current_grad

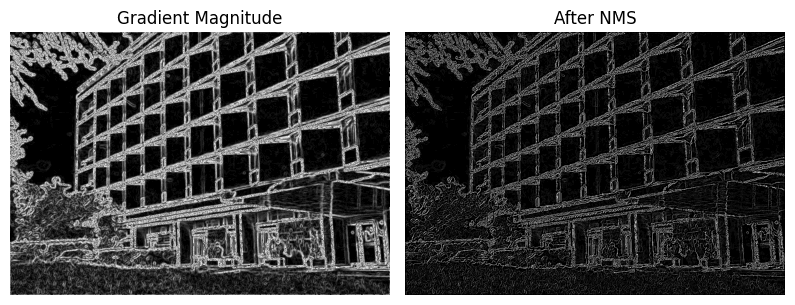

As you can see the edges are a lot more localized and we are using less pixels to represent the same information.

The next and final step of the Canny Edge Detector algorithm is hysteresis thresholding. In this final step we classify edges into 3 categories: strong edges, weak edges, and non edges. We do this via a double threshold system. if an edge is greater than th (the high threshold) it is a strong edge. If it is between th and tl it is a weak edge. If it is below the tl (low threshold) it is a non edge. The key part of this algorithm is that a weak edge can only stay IF IT IS CONNECTED TO A STRONG EDGE. How do we define weather or not a weak edge is connected to a strong edge? We employ a 8 neighbor check to and see if any edges in our surrounding pixels are strong. Note that the thresholds are arbitrary!

# we will now move into the final part of this algorithm: hysteresis thresholding
# abitrary values for these (except the strong)
high_thresh = 0.675 * nms.max()
low_thresh = 0.2 * nms.max()

strong = 255
weak = 125

res = np.zeros_like(nms, dtype=np.uint8)

strong_y, strong_x = np.where(nms >= high_thresh)
weak_y, weak_x = np.where((nms < high_thresh) & (nms >= low_thresh))
res[strong_y, strong_x] = strong
res[weak_y, weak_x] = weak

# Now we do the 8-neighbor check
H, W = res.shape
for y in range(1, H - 1):
    for x in range(1, W - 1):
        if res[y, x] == weak:
            if (
                res[y - 1, x] == strong
                or res[y + 1, x] == strong
                or res[y, x - 1] == strong
                or res[y, x + 1] == strong
                or res[y - 1, x - 1] == strong
                or res[y - 1, x + 1] == strong
                or res[y + 1, x - 1] == strong
                or res[y + 1, x + 1] == strong
            ):
                res[y, x] = strong
            else:
                res[y, x] = 0

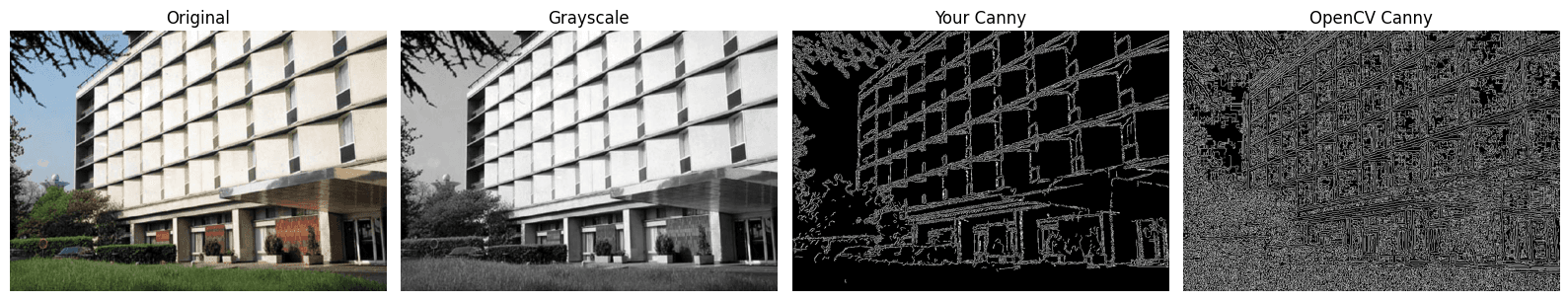

THATS IT!!! The results are below. Also the hysteresis thresholding values can be changed and I encourage you to mess around with. Oh also another note, this isn't real hysteresis thresholding because in the real one they use a BFS or DFS to see if a weak is connected to a strong ( BFS/DFS vid if you are unfamiliar ). I encourage you to download the code and try to implement this part for yourself.

In summary:

• DoG
• NMS
• Hysteresis Thresholding

Oh also we could have just used cv2s method...

canny_cv = cv2.Canny(img_gray, int(low_thresh), int(high_thresh))
